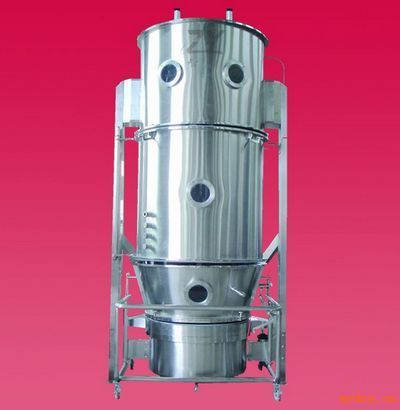

FL-B型腾制粒机（一步制粒机）

FLUID-BED GRANULATOR(ONE-STEP GRANULATOR

★设备特点：Features of equipment

※混合 - 制粒 - 干燥一步法制粒。

※双捕集滤袋系统，清灰彻底。 ·多流体雾化器，确保成粒均匀。
※可选配两巴的防爆设计
※GMP 规范设计、制造及工程配置布局。

※Mixing-granulating-drying in one-step.
※Adopting double chamber filtering bags system, remove dust completely.
※Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the

※content of powder is very low.
※Can choose 2 bar explosive-proof design
※Designed, manufactured and laid out by GMP

★应用概述 :General of applications

※本机主要用于：医药、食品、化工等行业的粉末物料混合、制粒、干燥、颗粒 “ 顶喷 ” 包衣等作业。如片剂颗粒、速溶饮料、调味品用颗粒。
※本机按 JB20014-2004 《药用沸腾制粒器》标准。

※The machine is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
※The machine is manufactured in accordance with JB20014-2004 《 Fluid-bed Granulator In Medicine 》

★技术参数:Technical Data

规格Specification 项目Item			3	5	15	30	45	60	90	120	150	200	300	500	800- 1000
投料量Capacity		Kg/批kg/batch	3	5	15	30	45	60	90	120	150	200	300	500	按用户要求设计 By client
原料容器容量Container voiume		L	12	22	45	100	155	220	300	420	550	670	1000	1500
风机功率Power of fan		Kw	4	4	5.5	7.5	11	15	15	18.5	22	22	30	45
噪音Noise		db	风机隔离处理噪音小于75分贝No more than 75db Separated of fan
压缩空气 Compressed air	压强 Pressure	Mpa	0.6
压缩空气 Compressed air	耗量Consumption	M3/min	0.4	0.4	0.6	0.9	0.9	0.9	1.1	1.1	1.1	1.3	1.6	1.8
蒸汽 Steam	压强Pressure	Mpa	0.4-0.6
蒸汽 Steam	耗量Consumption	Kg/h			35	60	99	120	130	140	161	180	310	450
电加热功率Power of electrical heater		Kw	6kw	9kw
主机尺寸 Size of installation for reference		H1(mm)			2670	2760	2940	3190	3200	3430	3520	3690	3770	4240
		H2(mm)	2600	2600	3030	3120	3430	3680	3690	3920	4010	4160	4240	4760
		H3(mm)	2410	2410	2480	2570	2715	2950	2960	3190	3280	3450	3510	3960
		B1(mm)	760	860	1010	1160	1320	1460	1560	1660	1760	1860	2060	2260
		B2(mm)	1060	1660	1560	1860	2180	2460	2660	2860	3060	3260	3660	4060
		L(mm)	850	1000	1100	1250	1530	1530	1530	1650	1650	1650	1750	1850
		￠1	300	400	550	700	860	1000	1100	1200	1300	1400	1600	1800
		￠2	150	180	180	180	250	280	280	280	280	280	315	355
