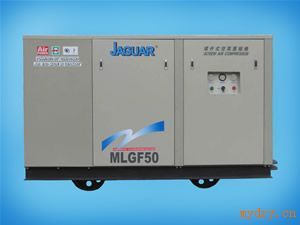

捷豹牌螺杆式空压机矿用防爆型 MLGF50、 MLGF75、 MLGF100、MLGF12
型 号 Model | MLGF-50 | MLGF-75 | MLGF-100 | MLGF-125 | MLGF-150 | |||
排气量/排气压力 Free Air Delivery/Discharge Pressure | (m3/min)/MPa | 0.7 | 6.5 | 10.5 | 14.1 | 16 | 20.5 | |
0.85 | 6.1 | 9.8 | 12.8 | 15 | 19 | |||
1.0 | 5.5 | 8.6 | 11.6 | 13.6 | 17.2 | |||
1.25 | 4.9 | 7.6 | 10 | 12.2 | 14.8 | |||
冷却方式 Cooling Model | 风冷 Air-Cooled | |||||||
排气温度 Discharge Temperature | ℃ | 风冷≤环境温度+10 | ||||||
润滑油量 Lubricant | 升/Liter | 20 | 29 | 29 | 70 | 94 | ||
噪音 Noise | dB(A) | 70-90 | ||||||
电动机 Motor | 功率 Power | KW/HP | 37/50 | 55/75 | 75/100 | 90/125 | 110/150 | |
转速 Rotate speed | RPM | 2950 | 2970 | 2970 | 2970 | 2980 | ||
启动方式 Straing Method | 直接启动 | |||||||
电源 Electricity | 380V/660V 50HZ/60HZ | |||||||
外型尺寸 Dimension | 长 Length | mm | 2200 | 2400 | 2600 | 2800 | 2800 | |
宽 Width | mm | 1000 | 1050 | 1100 | 1200 | 1200 | ||
高 Height | mm | 1450 | 1500 | 1600 | 1600 | 1600 | ||
轮距 | mm | 600/900 | ||||||
重量 Weight | KG | 2000 | 2300 | 2600 | 3000 | 3500 | ||
出口管径 Air Outlet Pipe Diameter | inch | 11/2" | 2" | 2"法兰 | 2"法兰 | 2"法兰 | ||
