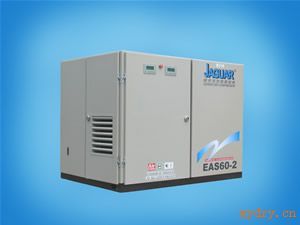

捷豹牌螺杆式空压机双机型 EAS60-2 EAS80-2、EAS100-2、EAS150-2、、、、
| 型 号Model | EAS-60X | EAS-80X | EAS-100X | EAS-150X | EAS-200X | EAS-250X | EAS-300X | EAS-350X | EAS-600X | |||
| 排气量/排气压力Free Air Delivery/Discharge Pressure | (m3/min)/ MPa | 0.55 | 10.5 | 12.4 | 14.6 | 24.1 | 32.8 | 38.5 | 43.8 | 52.0 | 88.4 | |
| 0.7 | 7.6 | 10.4 | 13.0 | 21.0 | 28.2 | 32.0 | 41.0 | 48.2 | 77.0 | |||
| 0.85 | 6.8 | 10.0 | 12.2 | 19.6 | 25.6 | 30.0 | 38.0 | 45.8 | 71.6 | |||
| 1.0 | 6.2 | 8.6 | 11.0 | 17.2 | 23.2 | 27.2 | 34.4 | 41.0 | 64.4 | |||
| 冷却方式 Cooling Model | 风冷或水冷 Air-Cooled .&.Water-Cooled | |||||||||||
| 排气温度Discharge Temperature | ℃ | 风冷≤环境温度+10；水冷≤40 | ||||||||||
| 润滑油量 Lubricant | 升/Liter | 29 | 40 | 70 | 94 | 112 | 112 | 120 | 120 | 145 | ||
| 噪音 Noise | dB(A) | 75 | 75 | 77 | 77 | 80 | 80 | 82 | 82 | 85 | ||
| 电动机 Motor | 功率 Power | KW/HP | 22/30*2 | 30/40*2 | 37/50*2 | 55/75*2 | 75/100*2 | 90/125*2 | 110/150*2 | 132/175*2 | 200/270*2 | |
| 转速 Rotate speed | RPM | 1470 | 1470 | 1480 | 1480 | 2970 | 2970 | 2980 | 2980 | 2980 | ||
| 启动方式 Straing Method | Υ-Δ 启动（Starter) | |||||||||||
| 电源 Electricity | 220V/380V/415V 50HZ/60HZ | |||||||||||
| 外型尺寸 Dimension | 长 Length | mm | 1600 | 1800 | 1800 | 2200 | 2500 | 2500 | 3000 | 3000 | 4000 | |
| 宽 Width | mm | 1150 | 1200 | 1200 | 1450 | 1600 | 1600 | 1800 | 1800 | 2000 | ||
| 高 Height | mm | 1250 | 1450 | 1450 | 1530 | 1700 | 1800 | 1800 | 1800 | 2000 | ||
| 重量 Weight | KG | 1400 | 2100 | 2100 | 2800 | 3600 | 4000 | 4800 | 5000 | 9000 | ||
| 出口管径 Air Outlet Pipe Diameter | inch | 2" | 2" | 2"法兰 | 2"法兰 | 3"法兰 | 3"法兰 | 4"法兰 | 4"法兰 | 6"法兰 | ||
| 冷却水出入口管径Cooling Water Pipe Diamenter | inch | 1"(内牙) | 1"(内牙) | 11/2"(内牙) | 11/2"(内牙) | 11/2"(内牙) | 11/2"(内牙) | 11/2"(内牙) | 11/2"(内牙) | 21/2"(内牙) | ||
| 冷却水用量Cooling Water Dosage | L/min | 200 | 200 | 300 | 300 | 400 | 400 | 450 | 450 | 550 | ||
