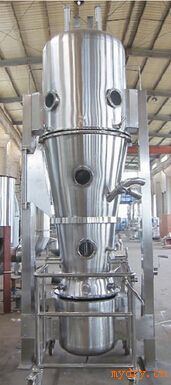

| LDP 流化床包衣机应用概述 General applications |
| | ★流化床包衣机是将流态化包衣技术与喷雾技术有机结合为 一体的新型微粒包衣设备 , 广泛用于膜缓控释、骨架缓控 释胶囊、丸剂包衣、颗粒、粉体包衣。
★Fluid-bed coater is a new style coating equipment that combined fluid-bed spraying technology and coating well. It is widely used for ilm slow and control releasing coating, framework slow and control releasing capsule, pellet coating, granule, powder coating, etc. |  | LDP 流化床包衣机设备特点 Features of equipment | | ★底喷流态化，物料具备一定规律的运行轨迹,因而可获得均匀、连续的衣膜。
★粉体、颗粒、丸掩味、防潮、防氧化、防水、防热、着色隔离等包衣。
★无包衣材料损失、生产成本低。
★雾粒到达物料线路短，无“喷雾干燥”之患。
★圆柱形加速容器或倒锥体减速设计,可进行微粒、大颗粒、小 颗粒、微丸包衣。
★物料分散性极好，无粘连现象。
★Coating of bottom spraying, material low in order. We can get uniform and continuous ilm.
★Taste masking odor, moisture-proof, antioxidation, prevent water, heat insulation, coloration and separation coating.
★Low productive cost, and the coating material is used perfectly.
★Short travel distance of fog granule and without the problem of “spray drying”.
★The design of cylinder for accelerator or cone for decelerate can Coating of granule, big granule and pellets.
★The high separate, without adhere. | | | | 技术参数 Technical Data | |
项目 ltem 规格Specification | 5 | 15 | 30 | 60 | 120 | 200 | 300-800 | | 投料量Capacity | kg/批kg/batch | 4-6 | 10-20 | 25-40 | 40-80 | 80-150 | 150-250 | 按用户要求设计 By client | | 原料容器容量Container volume | L | 15 | 50 | 100 | 220 | 360 | 650 | | 风机功率Power of fan | Kw | 4 | 5.5 | 7.5 | 15 | 18.5 | 22 | | 压缩空气Compressed air | 压强Pressure | Mpa | | | 0.6 | | | | 耗量Consumption | m3/min | 0.4 | 0.6 | 0.9 | 1.3 | 1.8 | 2.4 | 蒸汽Steam | 压强Pressure | Mpa | | | 0.4-0.6 | | | | 耗量Consumption | Kg/h | 9Kw | 64 | 85 | 181 | 250 | 330 | 主机尺寸Size of installation for reference | H1(mm) | 2600 | 2850 | 3150 | 3250 | 3500 | 3800 | | H2(mm) | | 340 | 490 | 590 | 790 | 890 | | H3(mm) | | 2630 | 2930 | 3020 | 3280 | 3580 | | B1(mm) | 1010 | 1160 | 1460 | 1660 | 2060 | 2260 | | | | | | | | | | B2(mm) | 1560 | 1860 | 2460 | 2860 | 3660 | 4060 | | | | | | | | | | | | Ø1(mm) | 550 | 700 | 1000 | 1200 | 1600 | 1800 | | Ø2(mm) | 180 | 250 | 250 | 280 | 280 | 315 | | L(mm) | 850 | 1550 | 1700 | 1800 | 2000 | 2100 | |
|
|
